NPSH and Cavitation: The Suction-Side Story

Most pump problems that get blamed on the pump are actually committed upstream of it. The suction side of a pumping system is where physics collects its debts, and the currency is called net positive suction head. Understand NPSH and you understand the single most common reason healthy pumps destroy themselves.

The Core Idea: Liquids Boil at Low Pressure

Every liquid has a vapor pressure — the pressure below which, at a given temperature, it flashes to vapor. Water at room temperature boils at an absolute pressure of about a third of a psi; water at 90 °C boils at pressures found inside many suction lines. As liquid accelerates into a pump's impeller eye, its local pressure drops below the suction-gauge reading. If that local pressure touches vapor pressure, bubbles form. A few millimeters later, the impeller has flung the mixture into a higher-pressure region and the bubbles collapse — not gently, but as microscopic implosions that hammer the metal with localized pressures measured in thousands of atmospheres. That is cavitation: boiling in the wrong place, followed by collapse in a worse one.

NPSHa and NPSHr

NPSH available (NPSHa) is a property of your system: the absolute pressure head at the pump suction, minus the liquid's vapor pressure head. It is built from four ingredients — the pressure on the supply liquid's surface, plus or minus the elevation between that surface and the pump centerline, minus friction losses in the suction line, minus vapor pressure. Hot liquids and high-altitude sites start the calculation in the hole; flooded suctions and pressurized vessels add margin.

NPSH required (NPSHr) is a property of the pump: the suction head at which, by the standard test, the pump's first-stage head has already fallen 3% from cavitation. Read that definition again — at NPSHr the pump is already cavitating measurably. The 3% head-drop convention makes testing repeatable, but it means NPSHr is not a line of safety; it is a line of accepted damage. Incipient cavitation — the first bubble collapse — can begin at suction heads two to five times higher than the 3% value on some high-energy pumps.

Hence the universal rule: NPSHa must exceed NPSHr by a margin, not merely meet it. Hydraulic Institute guidance (see the ANSI/HI standards on NPSH margin) recommends margins that vary with pump energy level and service — commonly from a few feet on small chemical pumps to ratios of 1.3 to 2.0 or more on high-energy boiler feed and pipeline machines.

How to Recognize Cavitation

By ear: the classic description is pumping gravel or marbles — a crackling, popping rattle loudest near the suction. It may come and go with tank level or liquid temperature, which is your first diagnostic clue.

By instrument: fluctuating discharge pressure and flow, broadband high-frequency vibration, and a performance point that has slid down and to the left of the curve.

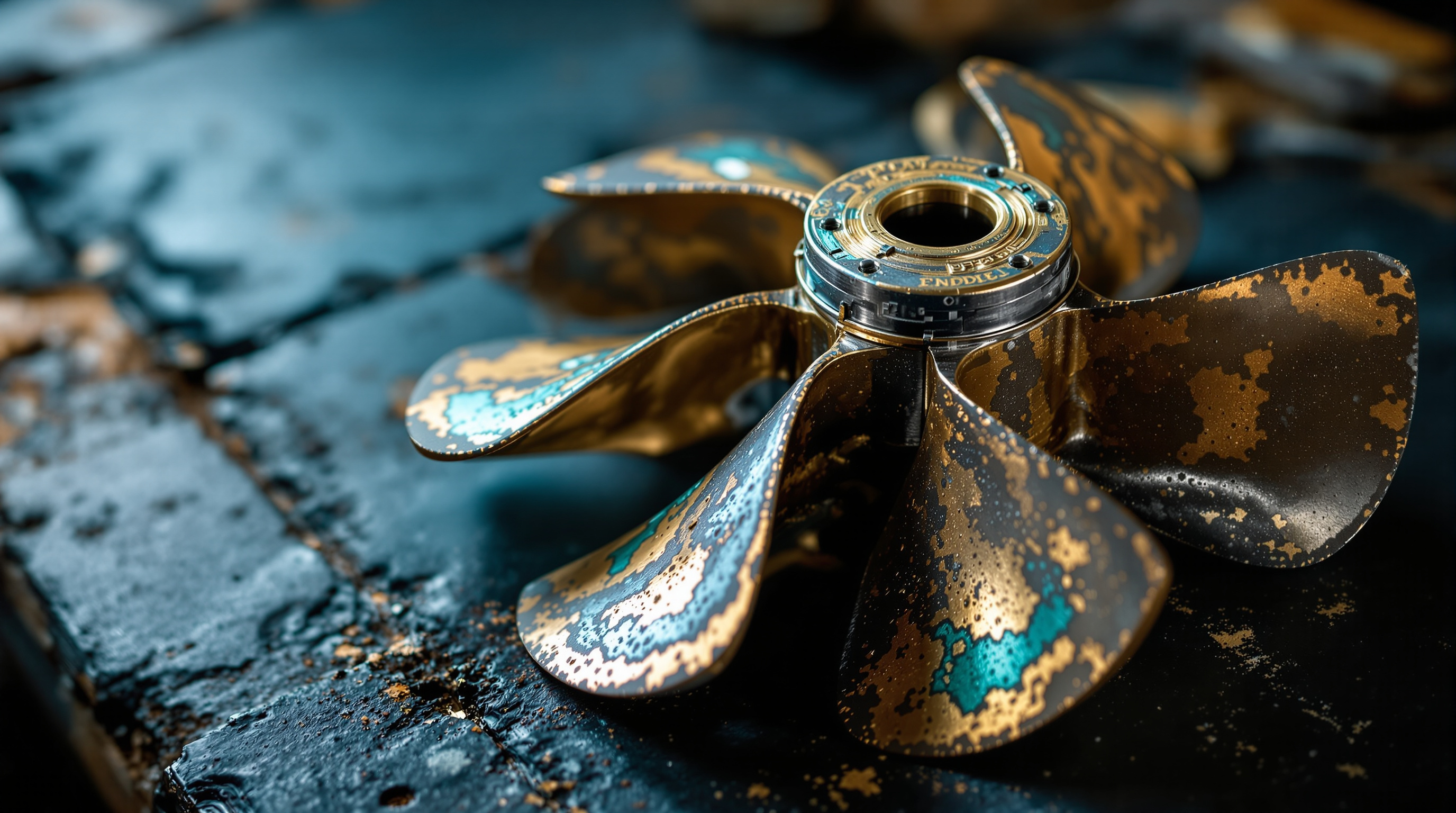

By autopsy: cavitation damage on an impeller is unmistakable — a spongy, pitted erosion concentrated just behind the leading edges of the vanes on their low-pressure side, as if the metal had been attacked by something with very small teeth. Distinguish it from corrosion (uniform, chemistry-driven) and from suction recirculation damage, which appears in different locations and signals operation too far below the best efficiency point.

Fixing It: The Levers You Actually Have

Because NPSHa is arithmetic, the fixes are too. Raise the source or lower the pump — every foot of additional flooded suction is a foot of NPSHa. Cool the liquid where the process allows; vapor pressure falls fast with temperature. Fatten and shorten the suction line — friction losses rise with the square of velocity, so one pipe size often transforms a marginal installation; keep suction velocities modest and fittings few. Pressurize the supply vessel if it is closed and the process tolerates it. Slow the pump down — NPSHr falls roughly with the square of speed, which is one of the under-appreciated gifts of variable speed drives. And when the system truly cannot provide what a standard pump needs, buy suction performance: larger slower pumps, double-suction impellers, or an inducer ahead of the first stage.

What does not work is hope. Cavitation does not anneal itself; an impeller eaten thin eventually loses balance, then bearings, then seal — and the failure report will say "seal failure" unless someone looks further upstream. The U.S. Department of Energy's pumping system resources include suction-side review in their assessment methodology for precisely this reason.

The Positive Displacement Postscript

Reciprocating and other positive displacement pumps state their suction requirement as NPIP (net positive inlet pressure), and their dominant suction enemy is acceleration head — the energy needed to accelerate the liquid column in the suction line every stroke. The cures are characteristic: short, generous suction lines, stabilizers or pulsation dampeners near the inlet, and honest accounting at design time. The arithmetic differs; the moral — respect the suction side — is identical. For how this plays out in dosing service, see the metering pump page; for the rest of the selection picture, the sizing guide continues the story.
